Let us introduce you to our exclusive PLATINUM range of Gel Blasters.
Do not upgrade any part of your toy gel blaster as this will void the warranty. Upgrades refer to pulling any of the blaster apart or opening it up, changing springs or upgrading the battery from 7.4v to an 11.v battery.
Silver Edge Gearbox
Quick Change Spring System
The Quick Change Spring Guide has 4 locking legs instead of 2.
Polished and Buffed housing surface.
8mm Bushings, Bearing Piston Head and Bearing Spring Guide.
- Gel Type: 7-8mm
- Inner barrel size: 7.5mm
- Barrel Type: Polished Stainless Steel
- Battery Source: 7.4 Li Po Battery with Mini Tamiya
- Alloy Silver Edge Gear Box Installed
- 8mm Metal Bushings
- M100 Spring
- 480 Long Shaft Motor
- Velocity: 280+FPS
- Fire Selector: Safe / Semi Auto / Full Auto
- Metal Hand Guard and ABS Gen 8 Magazine
- Metal Gear Box, Receiver, Sliding Stock, Handguard, Outer Barrel.
- Pistol Grip is made of a reinforced polymer.
- Magazine Capacity: 250 Gels
- Suitable Hopup: DK-Gen 10 Reverse Thread Hopup
ESILVEREDGE GEARBOX SDU INSTRUCTIONS/SPEC
SDU2.0 is a programmable ECU chips that is being used in eSilver Edge Gear Box
Simply pressing down the button underneath of the gear box, user can switch its fire selector modes (total 5 different modes). No external device or trigger control are needs, it is easy to program anytime and anywhere by the user.
First, connect your AEG with a fully charged battery (7.4V) Battery. The usuaal battery that you used when your play.
Second, find the switch button. The button is located underneath of the gear box reachable from the magwell of the lower receiver.
How to change the mode?
Step 1) Press and hold the button. You will see a Red LED light on, hold till you see its blinking 2 times, release the button to accept the changes. Repeat Step 1 to continue your choice.
Choice of Firing Mode:
Mode 1 (Default)
**Double click the button or unplug the battery anytime to reset the ECU back to its factory settings (Mode 1) **
Use of Advanced S.D.U.™ chips
The S.D.U.™ chipset that used in eSilver Edge Gear Box has a unique function that stop the gearbox from further damage if electric current is too high. Simply to say, electric current / Ampere will increase if there is a malfunction inside the gearbox. For instant, bad motor, damaged gears or short circuit. When our S.D.U. detected more than 5 trigger presses in exceed Amps, the whole gearbox will shut down to prevent further damage. User has to disconnect and then reconnect the power supply to reboot the gearbox, we strongly recommended user to check the internal immediately if mal-function happened.

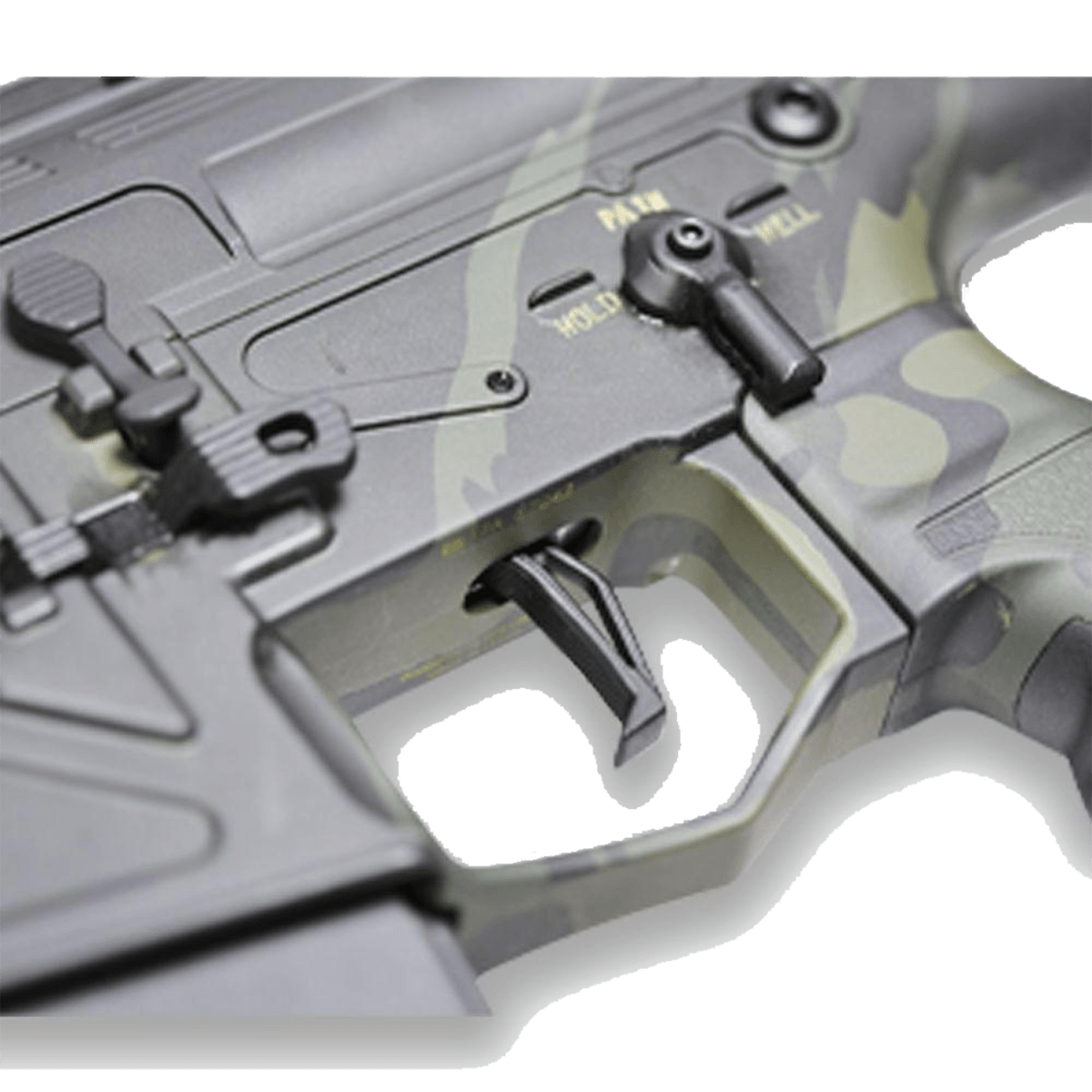

Micro Switch Trigger
eSilver Edge Gear Box standard comes with micro switch trigger works together with the S.D.U.™, providing you an instant trigger response when shooting. Base on our testing, the response time of the switch is just 0.02 sec and designed for two hundred thousand press. With the short stroke design of the trigger, it is unbelievable fast and you won’t feel any trigger delay when shooting.
In the Box

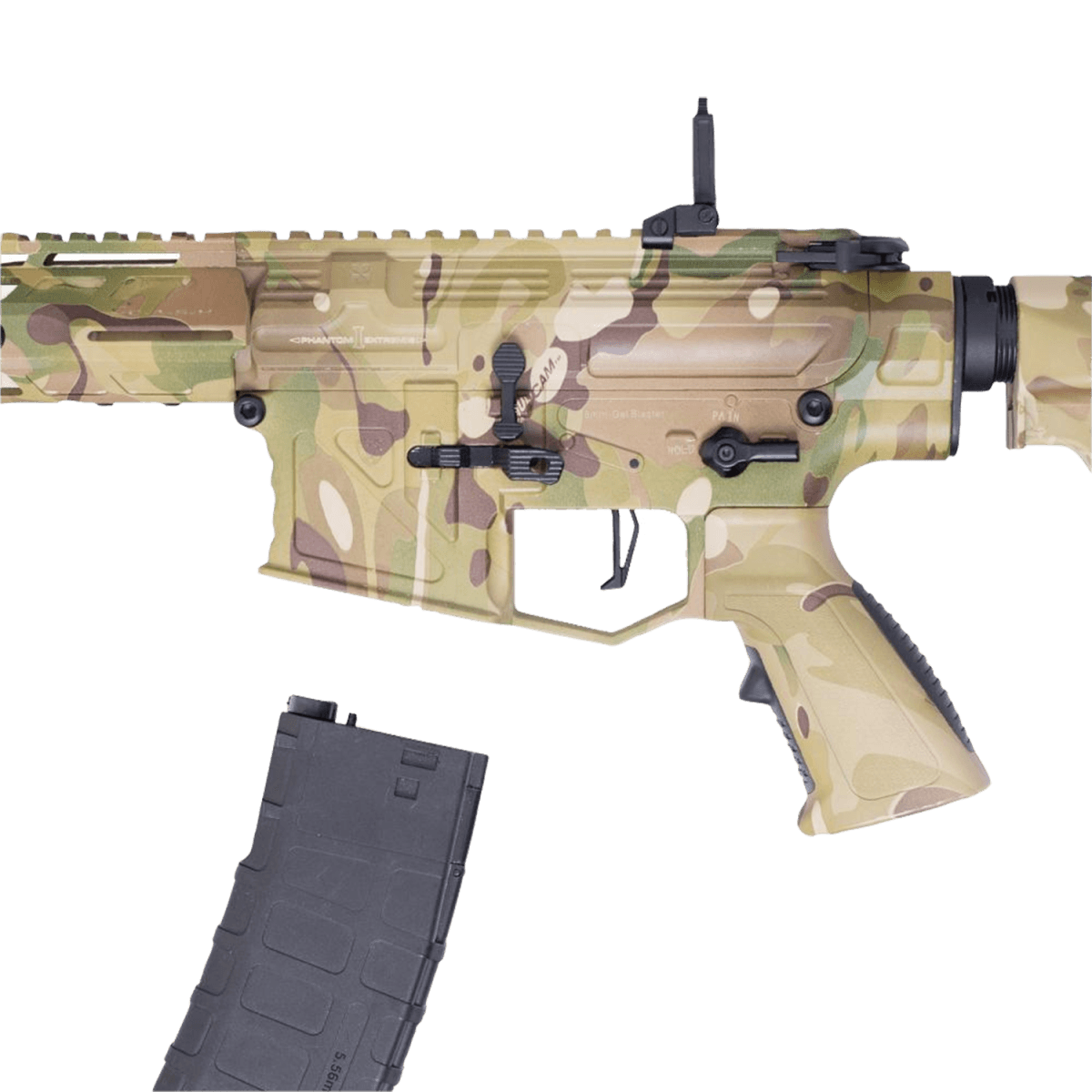

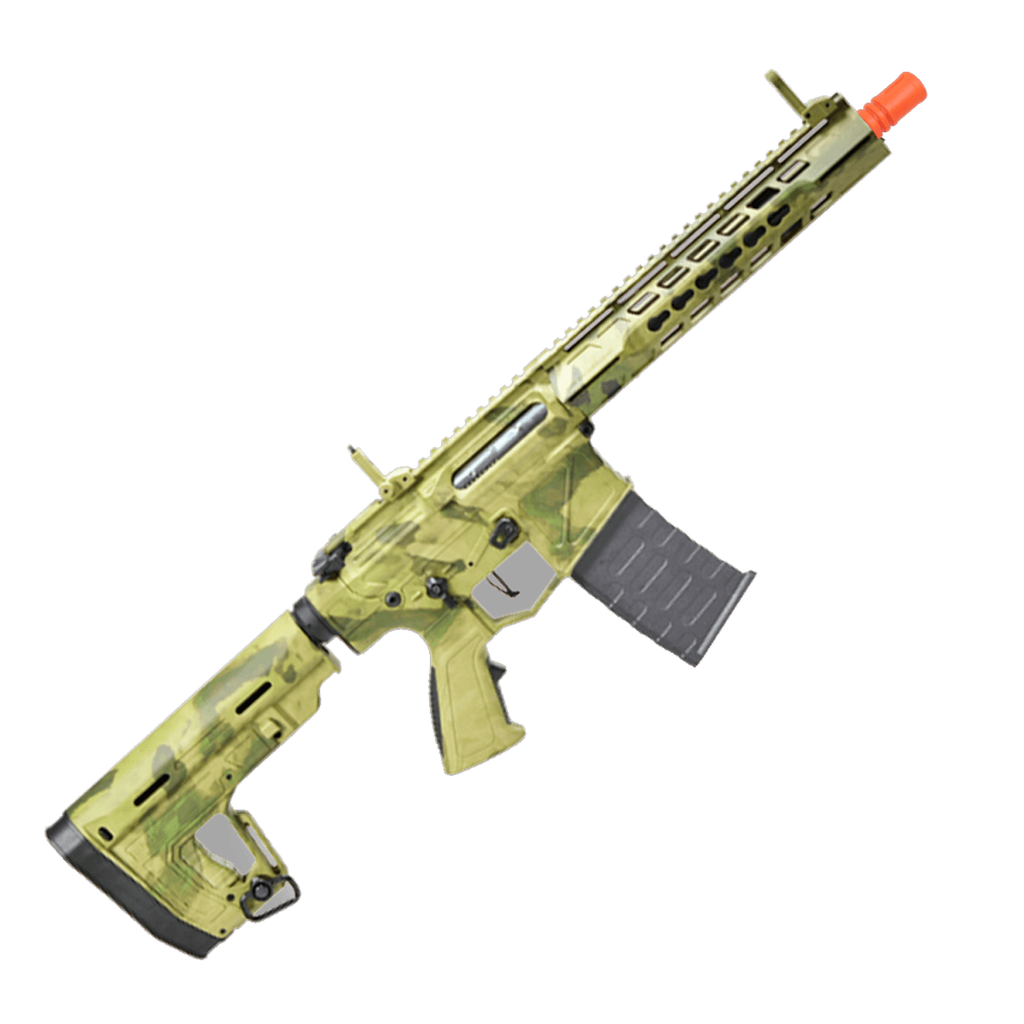

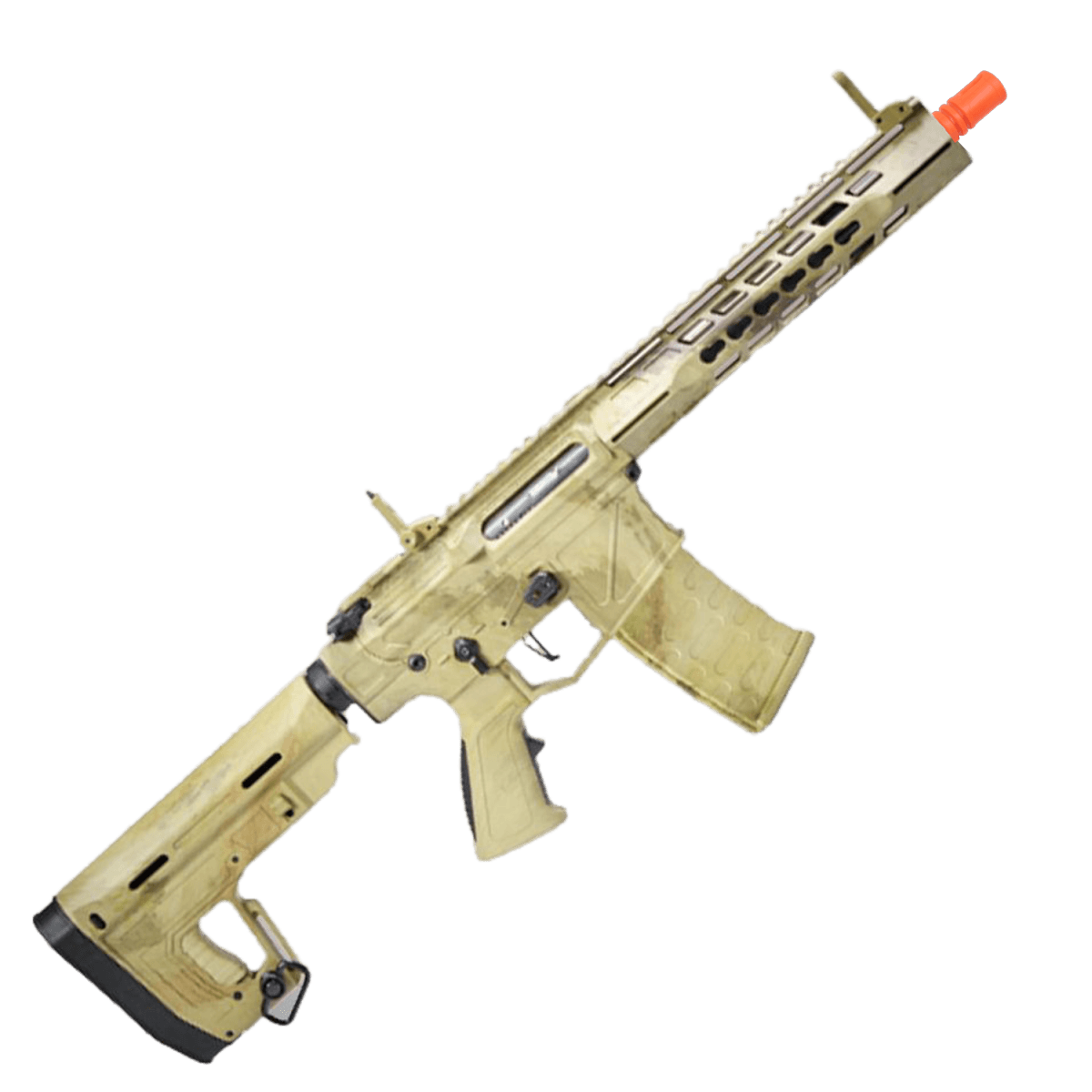

- 1 x Phantom Extremis MKI - ATACS AU
- 1 x Gen 8 Magazine - Black
- 1 x Plastic 14mm Left Handed Thread Orange Flash Hider
- 1 x Alloy 14mm Left Handed Thread Flash Hider - Black
- 1 x Safety Glasses
** Battery and Charger not included
Standard packing and handling times are between 1-3 Business days and from there, standard shipping times from Brisbane. During peak season, big sales (like 20-30% off) and special occasions such as Christmas and Fathers day there will be delays in shipping and we reserve the right to exceed the above guidelines on occasion.
For express post shipping times please see the Australia Post website for more details.
Once an order has been dispatched, it is in the hands of Australia Post and we will not be held responsible for any items that go missing and can not provide any discounts on new products that must be purchased to replace the missing items. Please call Australia Post if there are any issues with the delivery of your order.
Our contract ends once the order has been collected by Australia Post.
Free shipping for all orders over $50
For more information on our shipping policy, please click on the following link.
For more information on our refund policy, please click on the following link.
Do not leave batteries unattended whilst charging and take off charge when they have completed charging.
When charging the batteries, we recommend charging them between 1-4 hours.
When they are charging the light/s will flash and once it is fully charged, the light/s will turn a solid red or green.
Also once you start to hear the battery getting flat, please recharge it as running it flat can damage the cells.
Soaking & Storage of Gels
When soaking the gels, they need to be soaked fully submerged in water from the tap for a minimum of 5-6 hours.
Once they have fully grown you can leave them in the water and keep them in or out of the refrigerator.
When you are ready to use them just drain of any excess water with a strainer before you feed them into the mag but do not dry them as they need to be lubricated to work properly.
You can store gel balls in a bucket of water with a lid for up to 3 months before they start to go super soft. We recommend if you do this to change the water every couple of weeks.
